RSM-RV800 Pipe Crawler

Municipal (Industrial) drainage pipelines, water conservancy and water transmission pipe culvert, utility tunnel, cable trench and tunnel.
INQUIRY
Description Standard configuration Optional accessories
Application:
Municipal (Industrial) drainage pipelines, water conservancy and water transmission pipe culvert, utility tunnel, cable trench and tunnel.

Product usage:
General investigation of pipe network, acceptance of new pipe, pipeline overhaul, maintenance and detection, rehabilitation acceptance, construction monitoring, and pipeline finding

Specifications:
Technical Specification for Inspection and Evaluation of Urban Sewer CJJ 181-2012

Technical Specification for Inspection and Evaluation of Sewers with CCTV and Sonar
DB31/T 444-2009

Technical Specification for Inspection and Evaluation of urban Public Sewer DB44/T 1025-2012

Function Grade Evaluation Standard for Municipal Sewers Q/BDG JS001-GW05-2012

Function Grade Evaluation Standard for Municipal Sewers Q/BDG JS002-GW05-2012


Technical features:
1. Digital high definition: 500w pixel movement, clear and adjustable picture; the front-view and rear-view pictures can be displayed on the same screen and be switched freely.

2. Flexible wireless control of master controller: The master controller of notebook and tablet computer can switch at will, with Gigabit wireless router, dual-antenna configuration and stable transmission.

3. On-site report output: Support concurrent video recording and defect judgment in detection process and the test report can be issued on site.

4. Remote control handle: Mature control of handle in multiple ways, convenient to operate and control.

5. Strong power: High-power DC motor, with strong obstacle climbing ability. The two-side six-wheel independent drive, enabling the robot to make a turn for 360° in situ; automatic protection for the system locked-rotor and overcurrent is provided, and the hardware performance is stable.

6. Support 300~2000mm pipe test, with lifting height of up to 250mm, and support multi-pipe diameter test.

7. The system is provided with automatic overcurrent protection and the hardware is stable.

8. 22 high-brightness led lamps are adopted to provide compound lighting, and the light is adequate.

9. IP68, 10m water-proof.
Acquisition software interface:

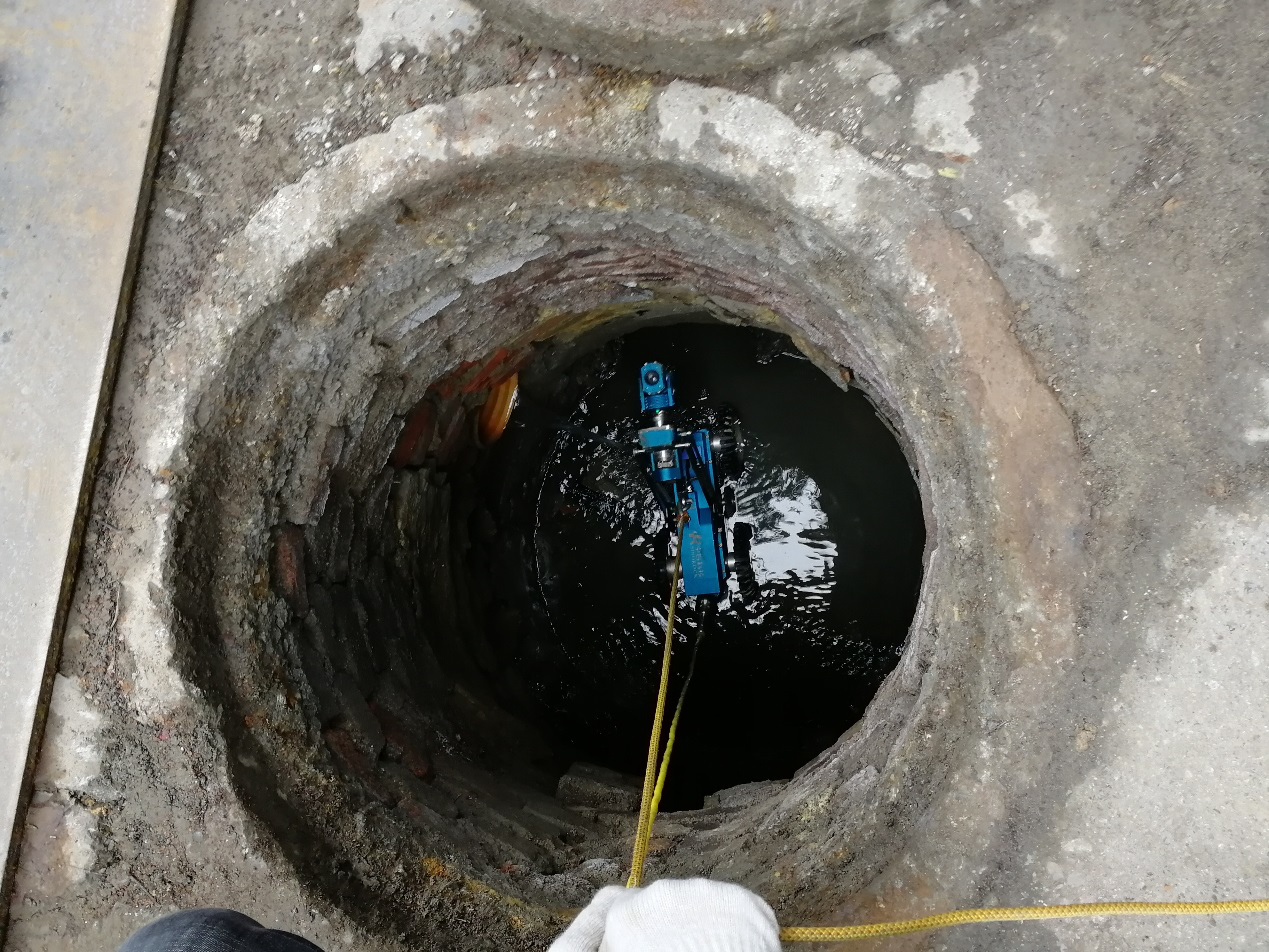

On-site detection diagram:



Performance indexes:

Crawler
Applicable aperture range 300-2000mm
Working temperature -10℃~50℃, non-freezing state
Protection level IP68
Obstacle  climbing ability 45° slope   10cm step    load≥80kg
Length of single stroke Standard configuration is 120m cable, and the length can be customized
Movement speed 32m/min at most
Lateral tilt resistance 40°
Number of tires With six-wheel dual-drive, can make a turn in situ
Dimension and weight 530*248*230mm,20kg
Rotary camera
Lens rotation / resetting Axially 0~360°, positive and negative 90° horizontally / one-key automatic resetting
Lens pixel Front-view 500w pixel,/ rear-view 200w pixel
Focusing and zooming function Automatic focusing, which can be adjusted manually. 10-time optical zooming
Lens light Eighteen forward 5W high-brightness LED spotlights, four 5W LED flood lights; four backward 5W LED flood lights; the intensity and brightness of all light sources can be adjusted continuously.
Lifting height 0-250mm (excluding the vehicle body height)
Master controller
Master control method Both wired and wireless control methods are available for notebook or tablet computer
Wire spool
Counting High-precision (±0.1mm) encoder, used to measure the paying-off length of cables and wires
Pay-off and take-up / safety measures Electric cable reel, driven by the motor to pay off and take up the cables automatically, with the function of manual pay-off and take-up / equipped with the emergency stop button
Movement method With corresponding mobile wheels
Power supply mode 220v, 50Hz civil power supply and movable battery
Cables 2-core cable, with outer diameter of 8mm, and maximum tensile resistance of 200kg
Automatic wire arrangement Multi-layer automatic wire arrangement
Dimension and weight 570mm * 380mm * 490mm/35kg




No. Name Quantity Specification and Model
1 Notebook computer (master controller) 1 unit Thinkpad E480
2 Automatic cable winding cart   1 unit RSM-RXC(A)
3 Crawler body 1 unit RSM-RV800(A)
4 Rotary camera 1 unit RSM-XZJT(A)
5 8-inch solid tire 4 tires
6 6-inch solid tire 4 tires
7 Tool 1 set
8 Crank 1 piece
9 Safety rope 2 pieces
10 Tire pump 1 piece
11 Power cord 1 piece
12 Network cable (2m) 1 piece
13 Downhole sleeve 1 piece
14 Downhole lifting hook 1 piece
15 Wellhead pulley yoke 1 piece
16 Inverter 1 piece
17 Vehicle body aviation box 1 piece
18 Tool kit 1 piece
19 U disk 1 piece
20 Screw 1 bag
No. Item Specification Quantity  Remarks
1 Large-capacity lithium battery   1 piece
2 10-inch pneumatic tire   1 set (four tires)
3 Remote control handle   1 piece
4 Tablet computer surface   1 unit PRO 4 13 64G
5 Automatic cable winding cart   1 set RSM-RXC(A)
6 Rotary camera   1 set RSM-XZJT(A)
7 8-inch solid tire   1 piece
8 6-inch solid tire   1 piece
9 Wellhead pulley yoke   1 piece
10 Downhole sleeve   1 piece
11 Downhole lifting hook   1 piece
12 Inverter   1 piece
