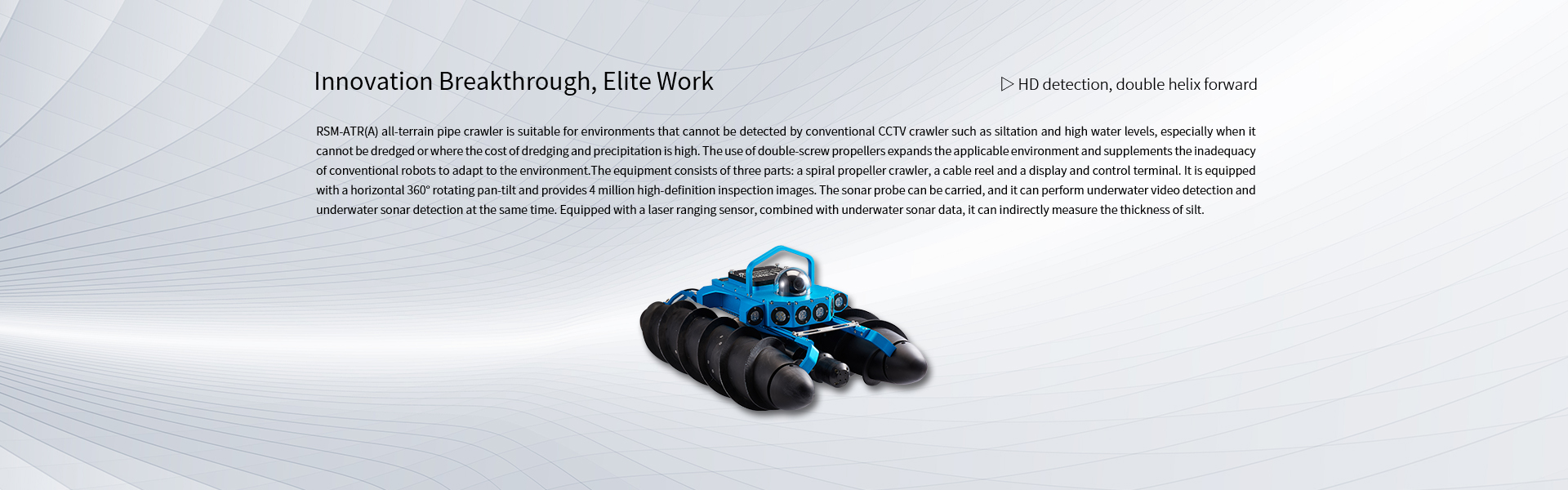

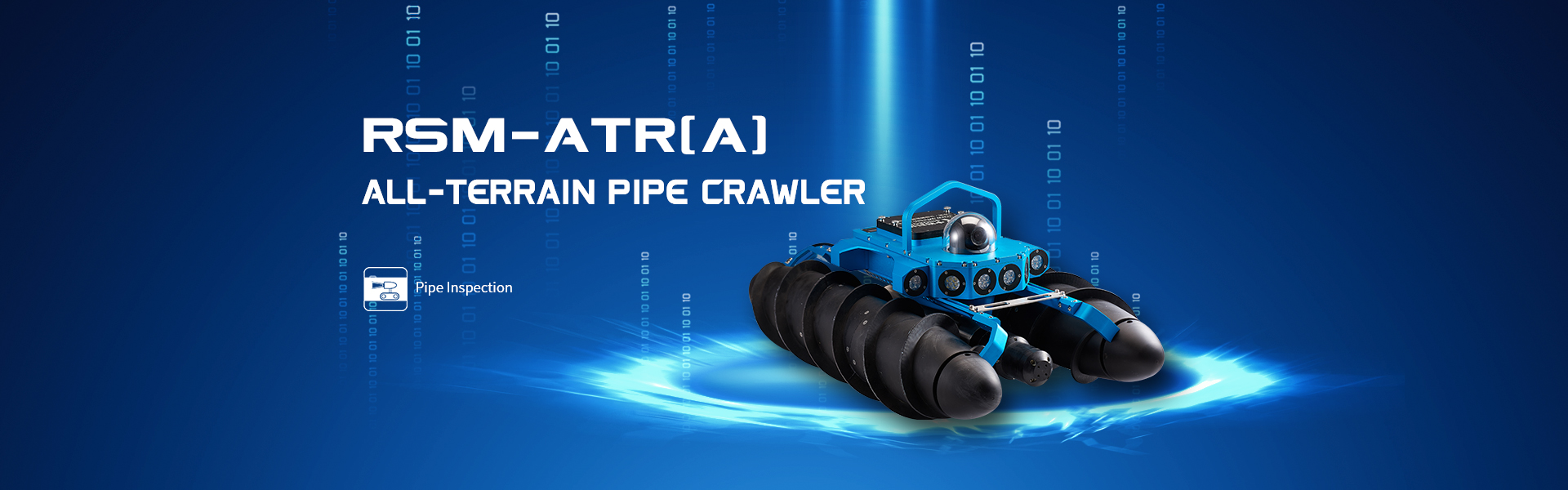

RSM-ATR (A) All-Terrain Pipe Crawler

  • RSM-ATR (A) All-Terrain Pipe Crawler
  • RSM-ATR (A) All-Terrain Pipe Crawler
  • RSM-ATR (A) All-Terrain Pipe Crawler
Product Features
Digital HD
Equipped with 4 million high pixel pan/tilt camera, anti-scratch, anti-condensation, "one-key reset".
Rear-mounted 2 million pixel camera for recovery.
Easily adapt
The spiral wheel propulsion structure is not only suitable for high water level environment, but also suitable for shallow water, shallow mud, beach and sand.

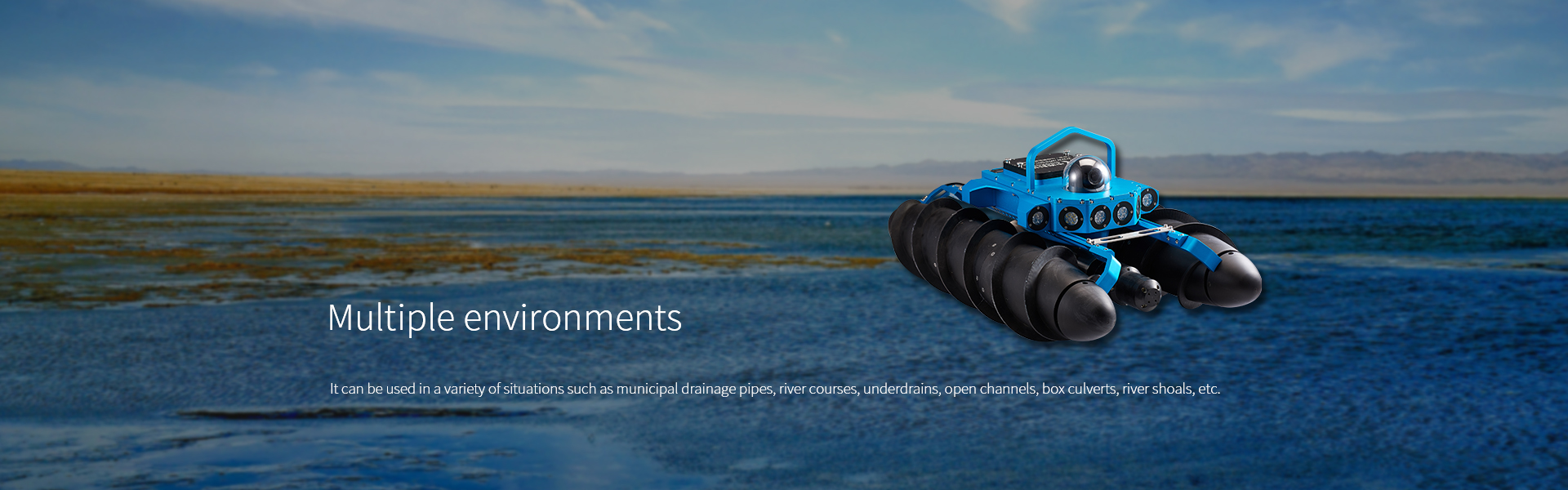

Multiple environments
It can be used in a variety of situations such as municipal drainage pipes, river courses, underdrains, open channels, box culverts, river shoals, etc.
Long Distance Detection
Standard 300-meter cable, up to 1000 meters can be customized to achieve ultra-long-distance detection.
Powerful
Using high-power and high-revolution motor, the speed in still water can reach 0.58m/s, and the backflow speed can reach 0.3m/s;
Flexible and Convenient
The double helix design can turn on the spot or turn in an arc. The direction is clear and the action is flexible.
Technical Features
RSM-ATR (A)
Application:
High siltation and high water level detection of municipal (industrial) drainage pipes, water conservancy pipe culverts, box culverts, tunnels, and river channels without pretreatment.
Specification:
Pixels:
400W
Optical Zoom:
10 times
Long Distance Detection:
1000m
Long Standby:
3h
Forward Speed:
0.5m/s
Load:
100kg Load
Crawler:
Tensile Strength:
300kg
Waterproof:
IP68 10m
