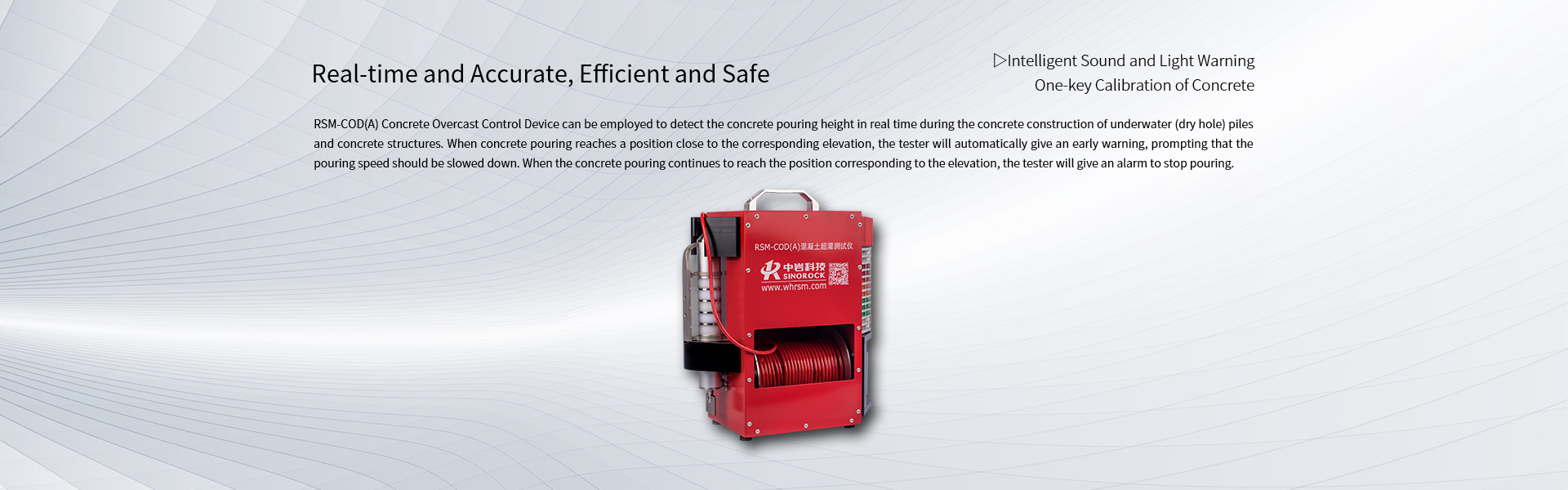

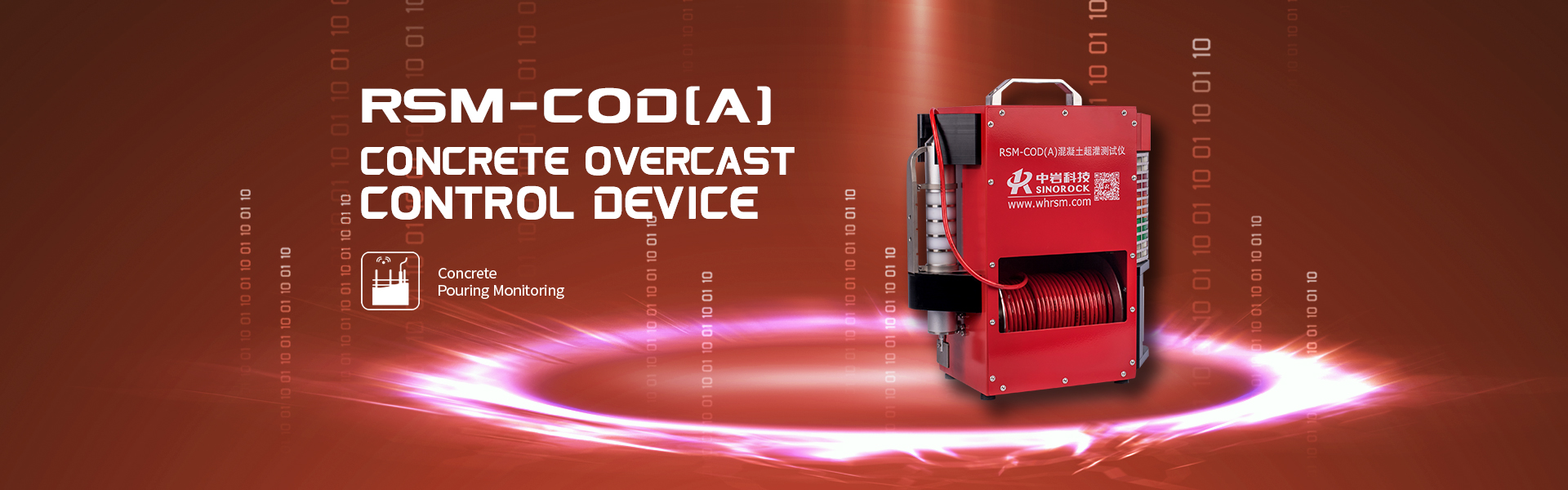

RSM-COD(A) Concrete Overcast Control Device

  • RSM-COD(A) Concrete Overcast Control Device
  • RSM-COD(A) Concrete Overcast Control Device
  • RSM-COD(A) Concrete Overcast Control Device
Product Features
One Key Calibration
Calibrate the test concrete parameters with one key.
Mobile APP View
The real-time collected data can be viewed through the mobile APP and drawn into the corresponding curve.
Intelligent Sound and Light Warning
Equipped with multi-color alarm lights, intelligent sound and light warning, capable of real-time control of pouring conditions.
Multi-parameter Synchronous Test, Accurate Positioning
Multi-parameter control, accurately distinguishing different media such as mud, water, floating slurry and concrete during the pouring process.rnThe concrete reaching height can be accurately tested, and the accuracy is controlled at 0.05m.
Tailor-made Probe
The probe is equipped with a mounting slot (which can simulate a knife edge), which is convenient for quick installation and disassembly on site.
Large Capacity Battery
The large-capacity lithium battery can be used for more than 48 hours when fully charged, and can be used while charging.
Technical Features
RSM-COD(A)
Applications:
For height control in the concrete pouring process of underwater (dry hole) concrete pile.
Specification:
Operation method:
Button operation, and fully automated operation during testing
Early warning method:
Sound and light alarm, multi-color alarm light
Test accuracy:
0.05m
Sampling depth:
0-25m (The distance from the top of the hole, can be customized)
Power supply:
Built-in lithium battery power supply (continuous use for more than 48 hours) can be used while charging
Signal acquisition:
Dual-signal automatic acquisition
Probe:
Dimensions:
φ45mm x 400mm
Weight:
1.8kg
